Description

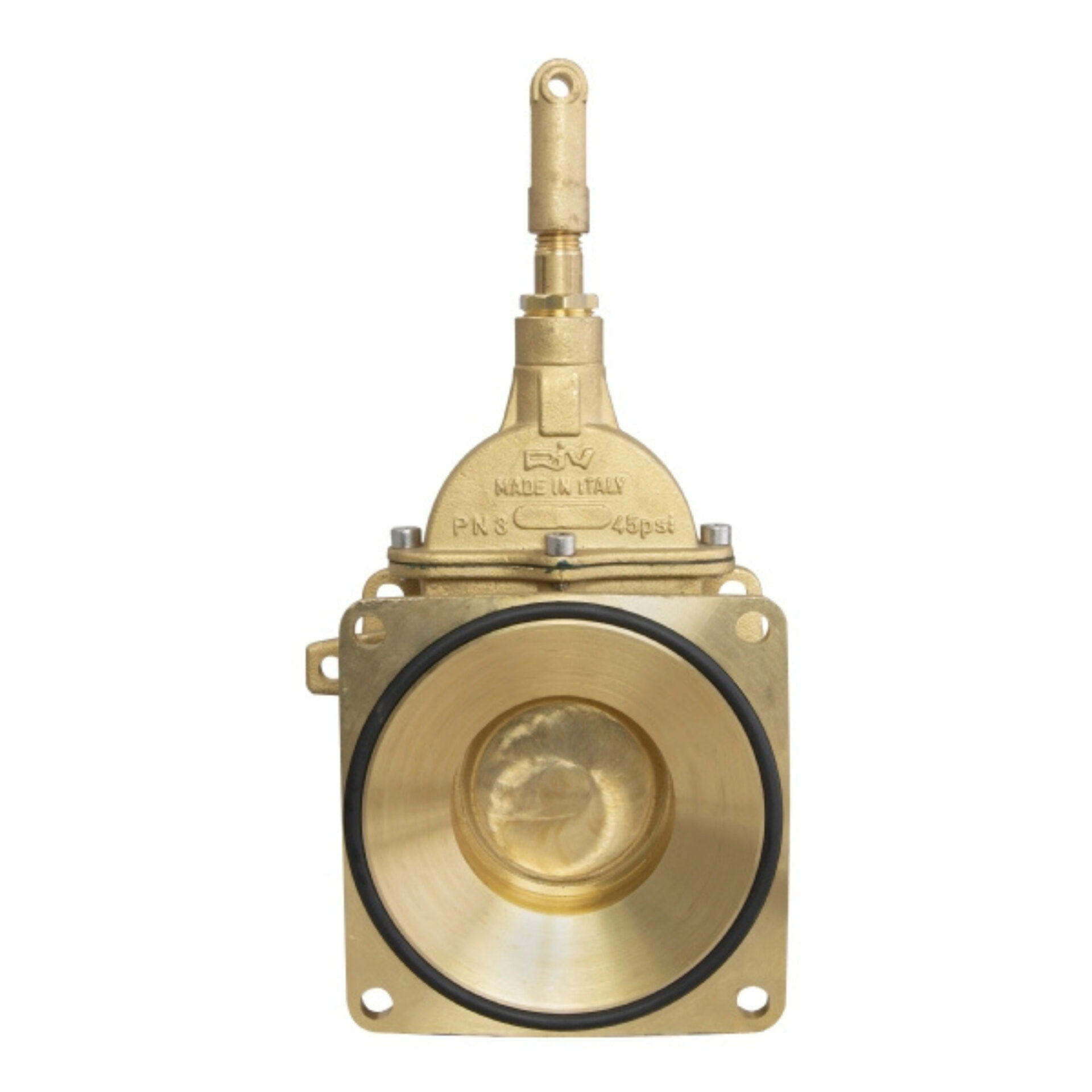

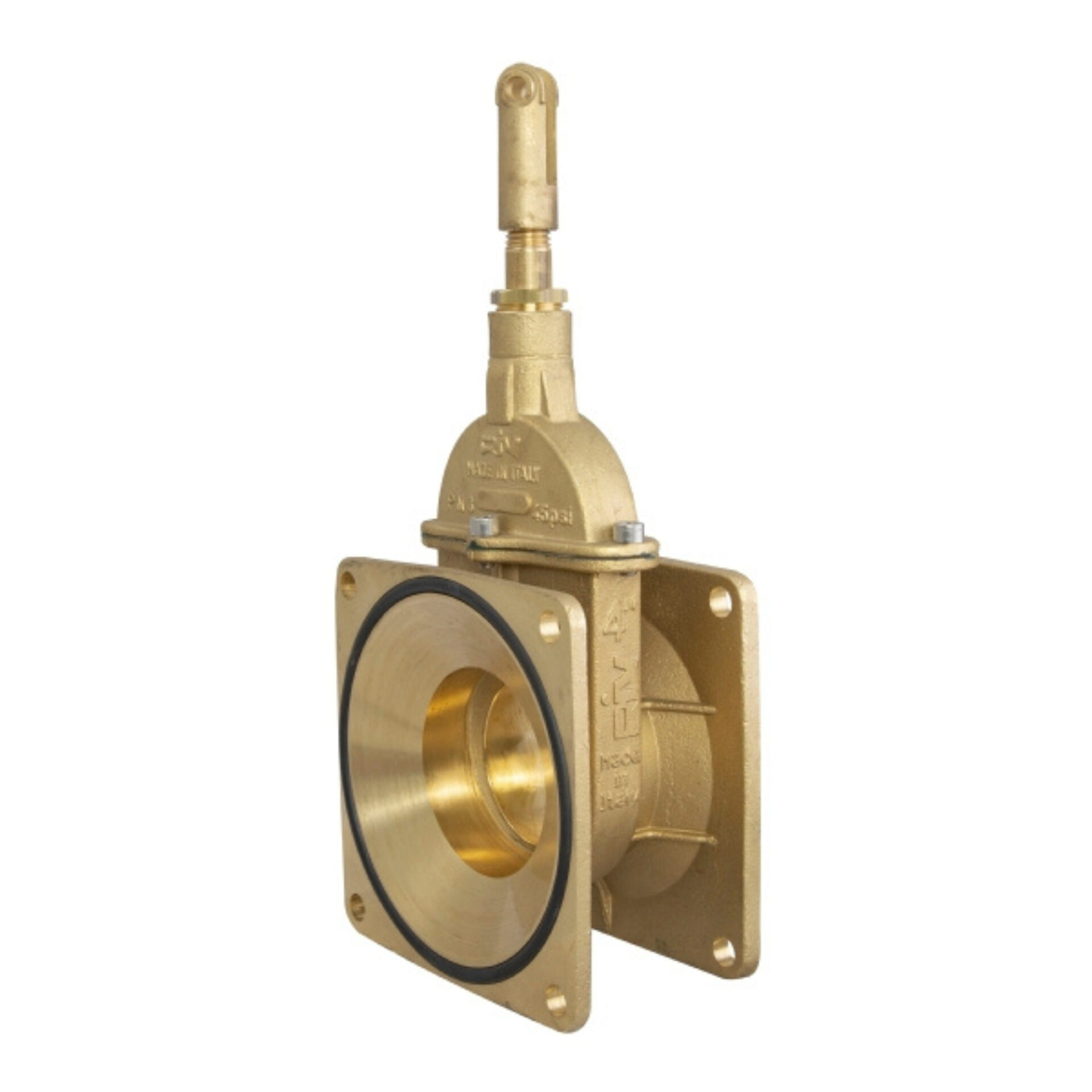

Metaltecnica Standard 4" Gate Valve With 4 Bolt Flange - High quaility Italian made brass valve supplied with 'O' rings and spindle 'U' piece
This is the standard 4" Flanged Gate Valve found on most smaller tanks from Redrock, Major, Ruscon, Belmac, Joskin, Herbst tanks.
- Brand: MZ
- Gate valve bolt x bolt
- Passage hole nominal diameter - 6 Inch
- Flange mounting bolts/holes distance - 150 mm
- Flange mounting bolts/holes diameter - 13 mm
- Flange thickness - 90 mm
- Total width - 180 mm
- Total height - 490 mm
- Passage hole centre to lever end distance - 324 m
- End Type 1: 4 Bolt Flange
- End Type 2: 4 Bolt Flange
- Size 1: 4in (101.6mm)
- Size 2: 150 x 150mm
