Pre Insulated Spade Terminal, Standard Grip - Female Spade with Male Branch, 6.3mm, Blue (1.5 - 2.5mm) (Agripak 25 pcs.)

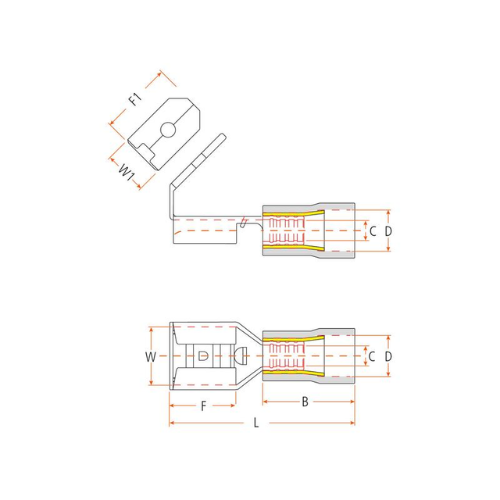

- B (mm): 10
- C (mm): 2.3
- D (mm): 4.7
- F (mm): 8
- F1 mm: 8.2
- L (mm): 21
- W (mm): 6.7
- W1 mm: 6.4
- Male Female: Female Spade with Male Branch
- Maximum Current Rating: 15Amps
- Maximum Volts: 300V
- Pack Type: Agripak
- Pieces: 25 pcs.
- Size (mm): 6.3
- Tab Size: 0.8 x 6.35
- Temperature range: -10°C to +75°C
- Wire csa mm²: 1.5 - 2.5
