FAG Spherical Double Roller Bearing Drive Side

Description

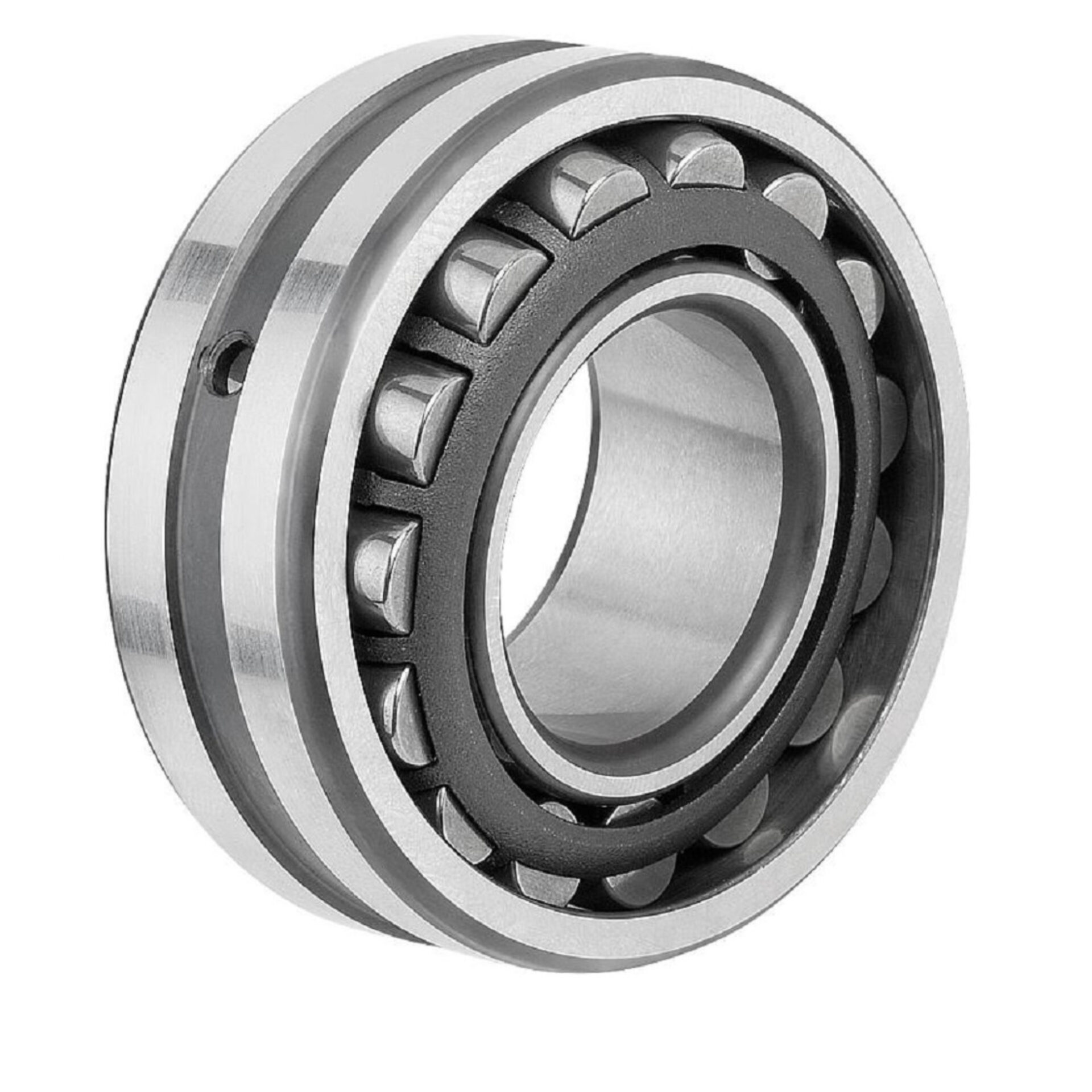

This spherical roller bearing has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections.

Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.

Specifications

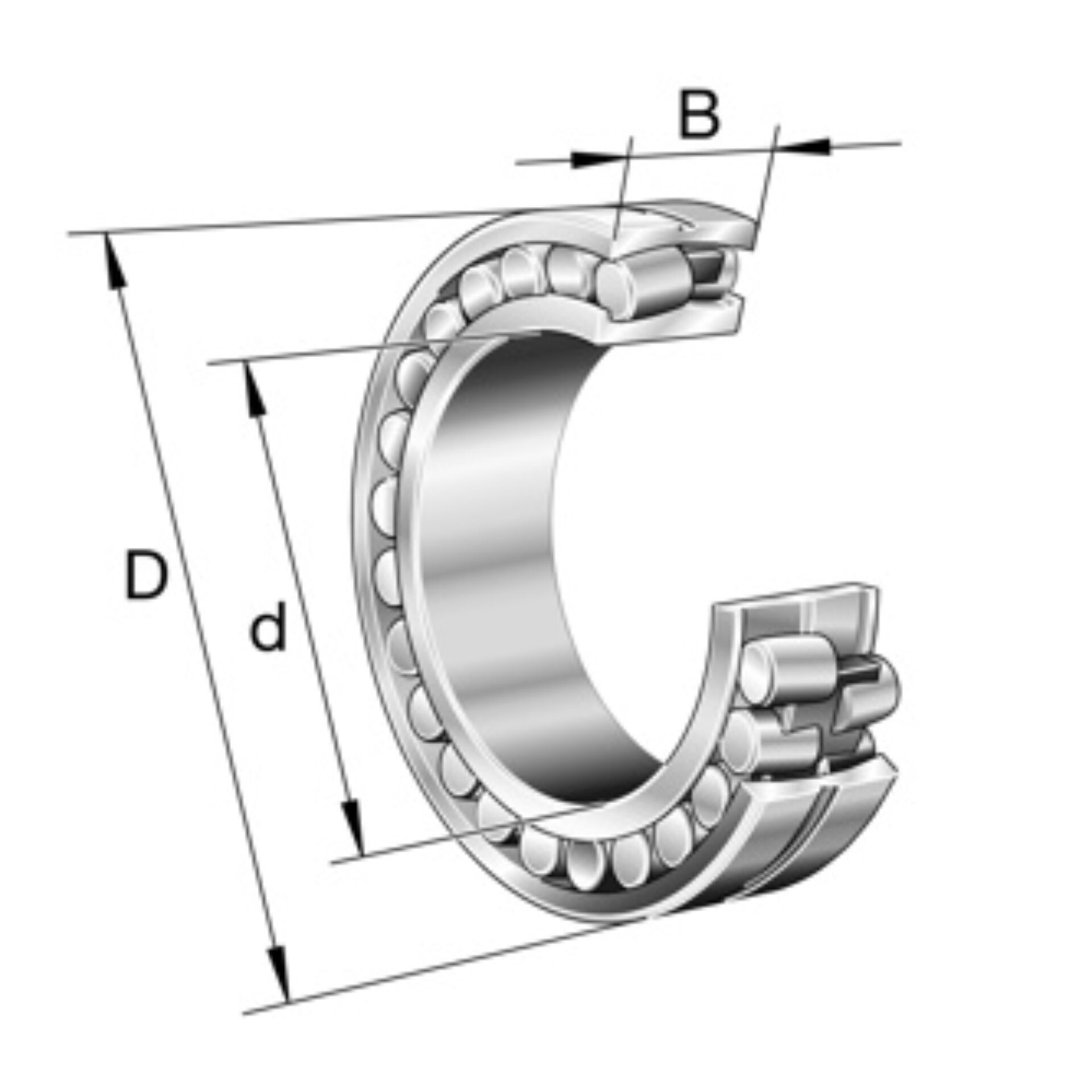

• Inner Diameter (d): 50
• Outer Diameter (D): 90
• Width (B) mm: 23
• Also known as: McHale CBR00060 | Krone 9319260 | John Deere DC40460 | Kverneland A140348400 | New Holland 80330685
• Drive-Side Double Roller Bearing
