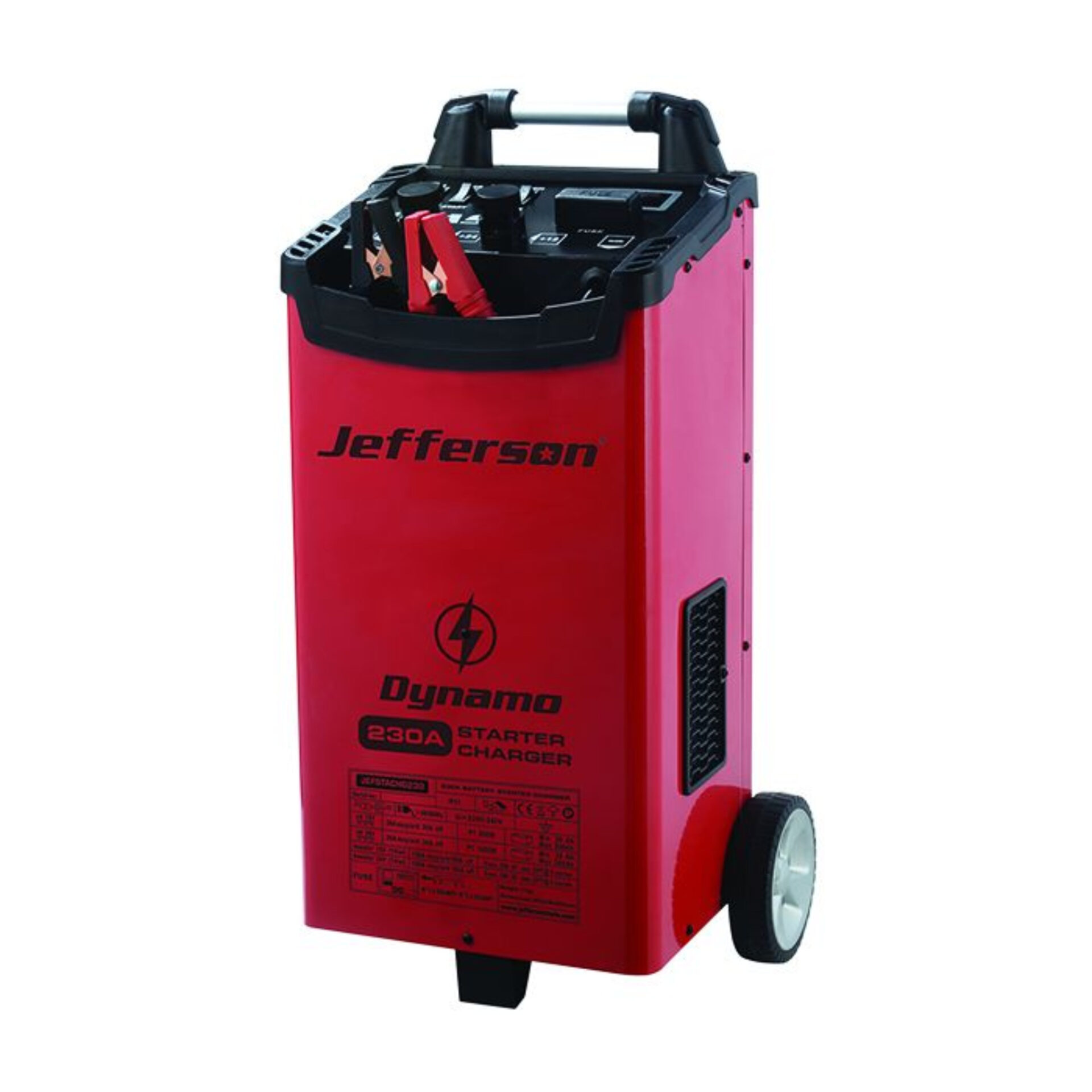

The Jefferson Dynamo 230A Starter Charger is a single-phase battery and starter charger suitable for both regular and low maintenance batteries ranging from 20 to 350Ah.
Designed for 12V/24V battery voltages, it features a well-ventilated design, a large ammeter display, and dash-mounted fuse with polarity protection.
The charger offers a variable charging rate and includes fully insulated positive and negative charging clamps.
Overview
- 230A single phase battery / starter charger
- 12/24V battery voltage
- Well ventilated to help maintain low temperatures during operation

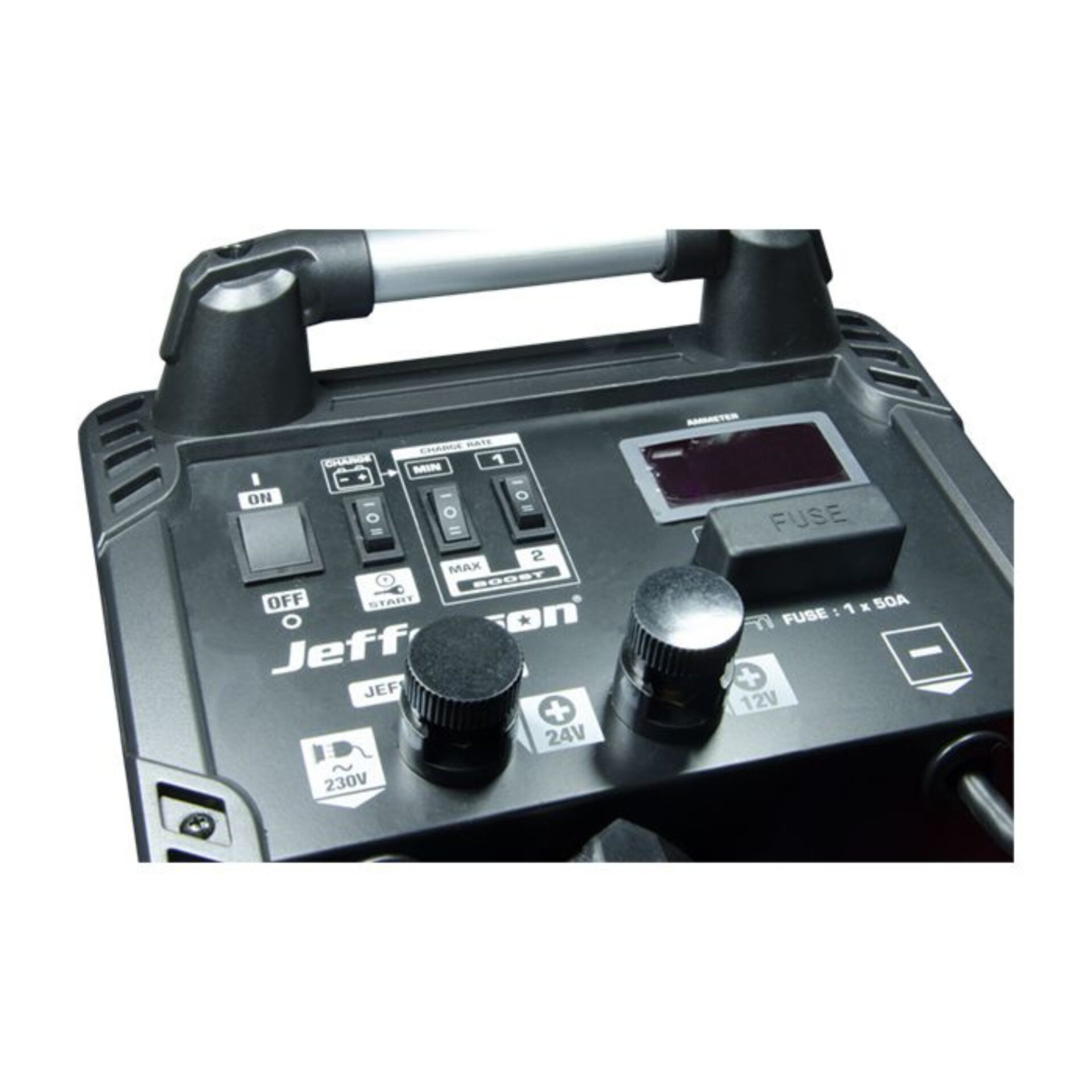

- Large ammeter display showing rate of charge
- Dash-mounted fuse and polarity protection
- Variable charging rate

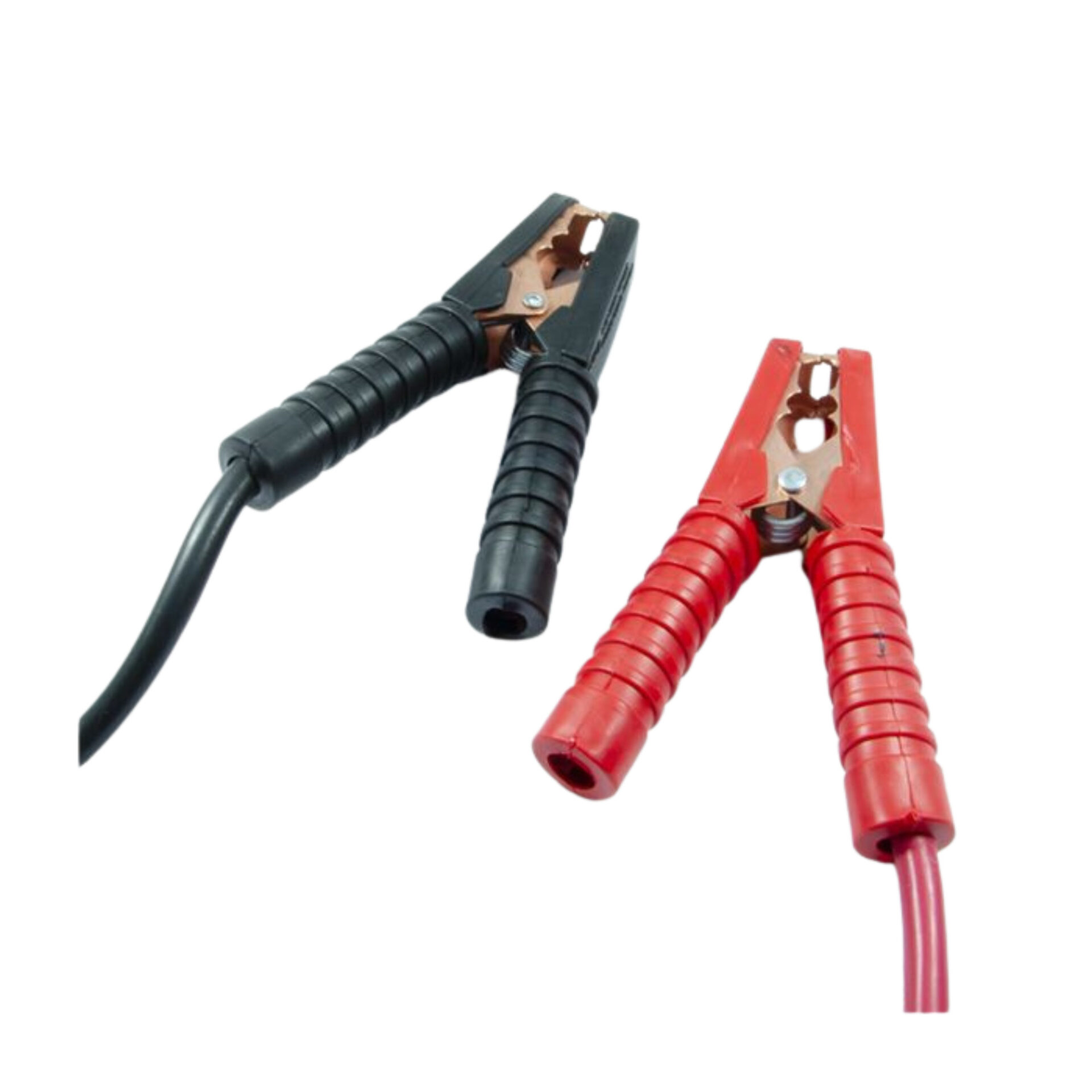

- Supplied with a pair of fully insulated positive and negative charging clamps which can be stored within the equipment casing
- Suitable for charging regular and low maintenance batteries between 20 - 350Ah
Specifications:
- Charging Rates: 4
- Fast Charge Timer: No
- Charging Cables: 14mm x 2.0m
- Plug: 13A
- Power Cable: 3 x 1.5mm x 2.4m
- Input Power: 80W
- Input (Charge): 0.4A
- Input (Start): 2A
- Battery Capacity (Min - Max): 20-350Ah
- Output Voltage: 12V / 24V
- Output Start Peak (EN): 180A (120A)
- Output Charge Peak (EN): 30A (25A)
- Duty Cycle: 5sec on / 30sec off @5 cycles
- Fuse: 1 x 50A
- Gross Weight: 15.61 kgs
