Description

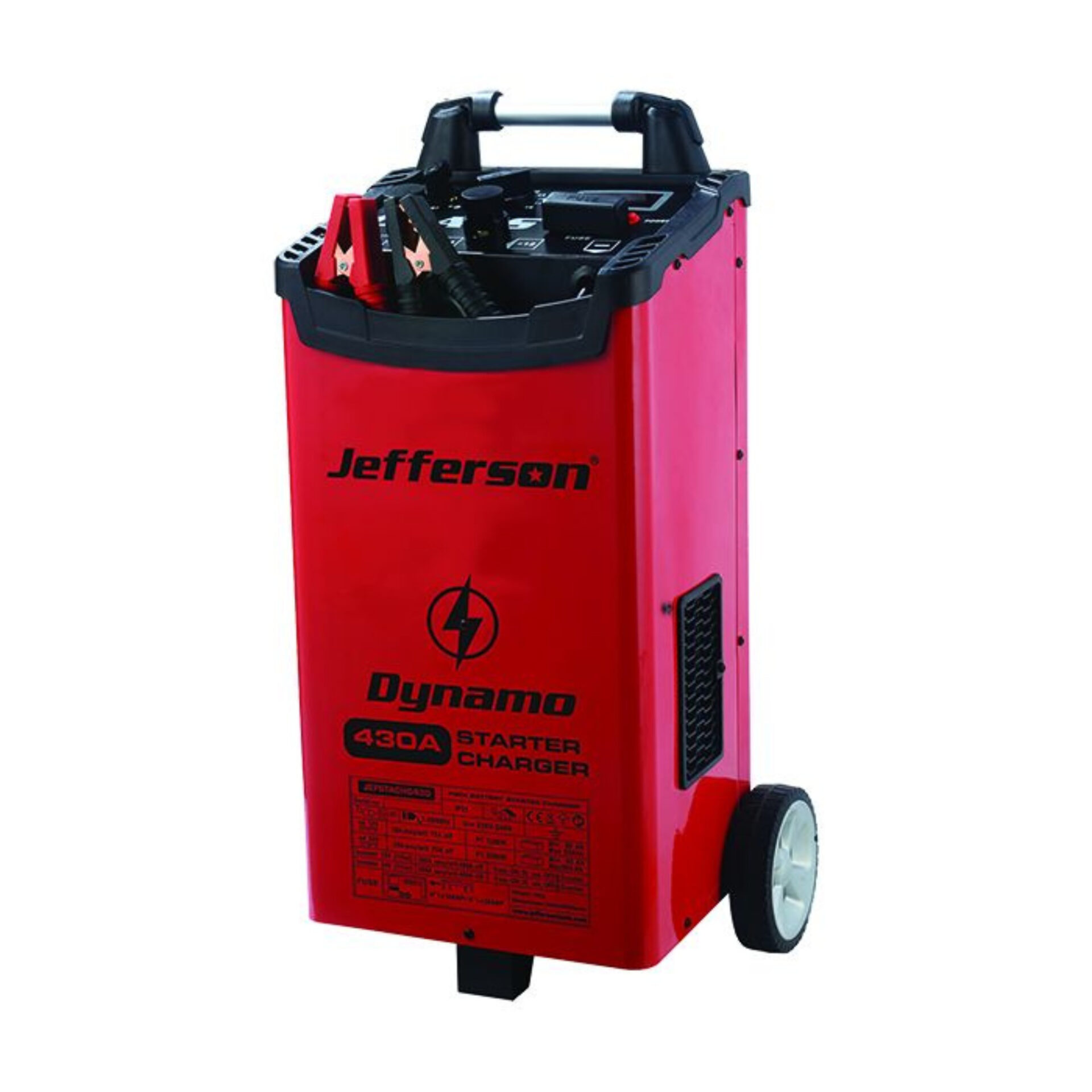

The Jefferson Dynamo 430A Starter Charger is a robust single-phase battery and starter charger suitable for both regular and low maintenance batteries ranging from 60 to 800Ah.
With 12V/24V battery voltage options, it features a well-ventilated design, a large ammeter display, and dash-mounted fuse with polarity protection.
This charger provides a variable charging rate and includes fully insulated positive and negative charging clamps.
Overview
- 430A single phase battery / starter charger
- 12/24V battery voltage
- Well ventilated to help maintain low temperatures during operation
- Large ammeter display showing rate of charge
- Dash-mounted fuse and polarity protection
- Variable charging rate
- Supplied with a pair of fully insulated positive and negative charging clamps which can be stored within the equipment casing
- Suitable for charging regular and low maintenance batteries between 60 - 800Ah
Specifications
- Charging Cables: 14mm x 2.0m
- Plug: 13A
- Power Cable: 3 x 1.5mm x 2.4m
- Input Power: 130W
- Input (Charge): 0.4A
- Input (Start): 3A
- Output Voltage: 12V / 24V
- Output Start Peak (EN): 400A (300A)
- Output Charge Peak (EN): 75A (30A)
- Duty Cycle: 5sec on / 30sec off @5 cycles
- Fuse: 2 x 50A
- Gross Weight: 15.62 kgs
