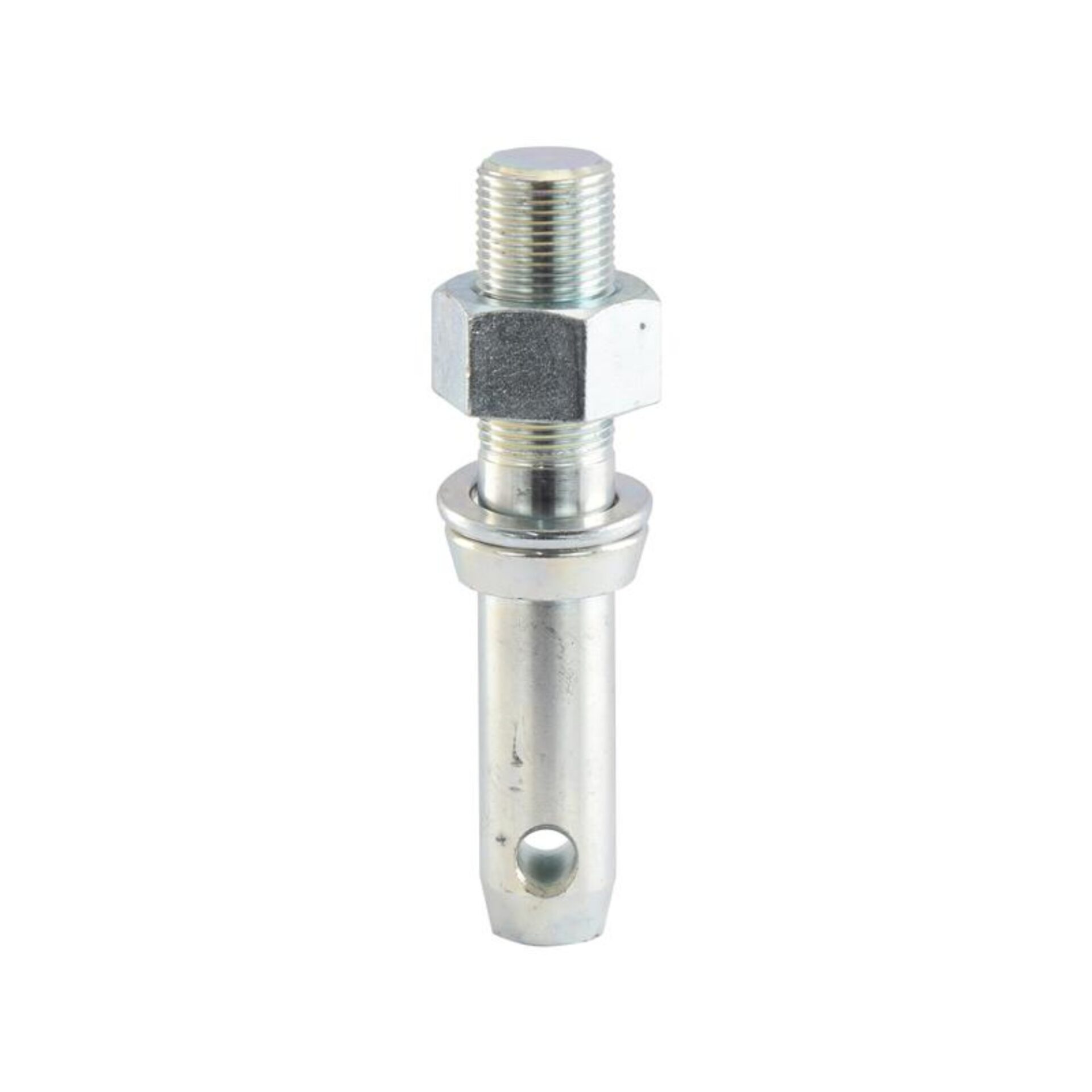

Lower link implement pin 28x159mm, Thread size 1-1/8x60mm Cat. 2 (Ø28mm)
- Category: 2 (Ø28mm)

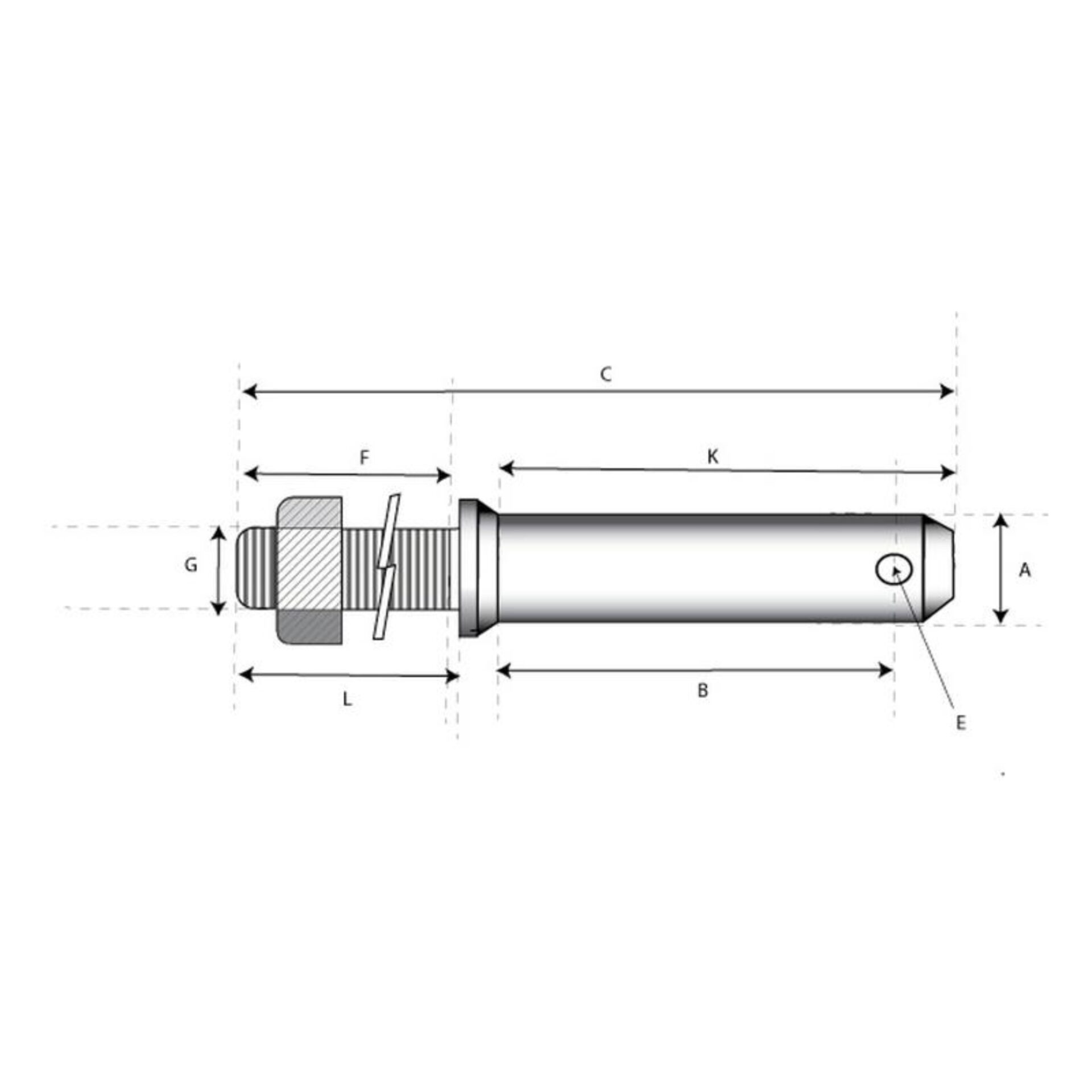

- Diagram specifications: (A) Pin Ø:28mm (1-1/8'') (B) Working length :57mm (2-1/4'') (C) Overall length:159mm (6-1/4) (E) Hole Ø :12mm (1/2'') /(F))Thread length:60mm (G) Thread size :1-1/8''
- Duty: Standard
- Hole Ø (ins): 1/2
- Hole Ø (mm): 12
- Material: EN8 Steel
- Overall length (ins): 6-1/4
- Overall length (mm): 159
- Pin Type: Implement Attachment
- Pin Ø (ins): 1-1/8
- Pin Ø (mm): 28
- Thread length (mm): 60
- Thread size: 1-1/8
- Thread type: UNF
- Working length (ins): 2-1/4
- Working length (mm): 57
