Description

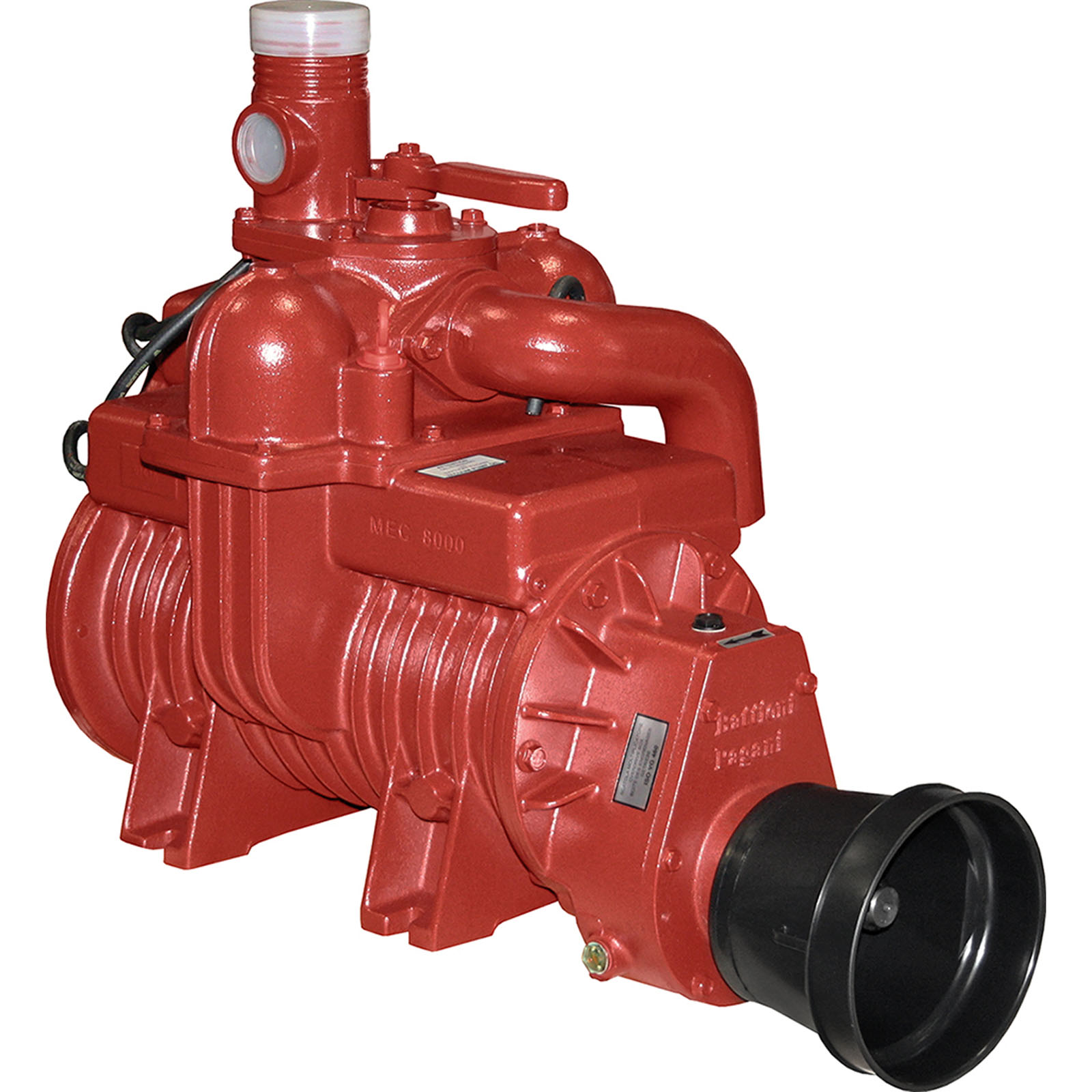

MEC 8000 Mechanical Drive Pump
- Mechanical drive
- Maximum flow rate: 8100 lpm
- Maximum RPM: 600 rpm
- Maximum absolute pressure: 2.5 bar (36 psi)
- Maximum relative pressure: 1.5 bar (21 psi)
- Vacuum with depression valve fitted: -0.80 bar
- Max vacuum: -0.94 bar
- Power absorption @ 1.5 bar absolute, 540 rpm: 15 kW
- Power absorption @ 1.5 bar relative, 540 rpm: 24 kW
- Power absorption @ 1.5 bar absolute, 1000 rpm: 9.5 kW
- Power absorption @ 1.5 bar absolute, 1000 rpm: 21 kW
- Shaft EN ISO 500 Ø: 1 3/8" - 6 spline
- Valve hole: 1 1/2" BSP
- Rotation: Anti-Clockwise
- Lubrication: Manual lubrication
- Oil Tank Capacity (ltrs.): 3.8L
- Not supplied with 1 1/2'' Pressure Relief Valve
- Drive Type: PTO driven
- Nett weight: 160 kg
