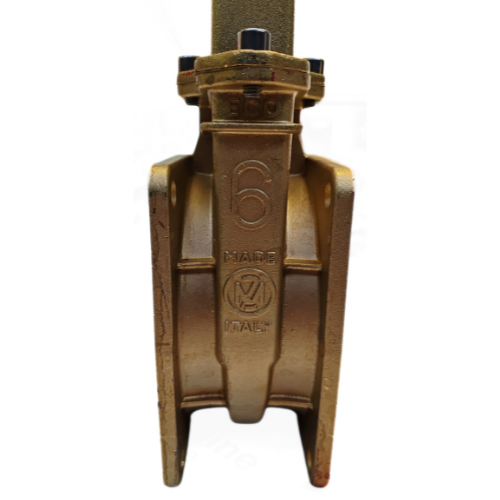

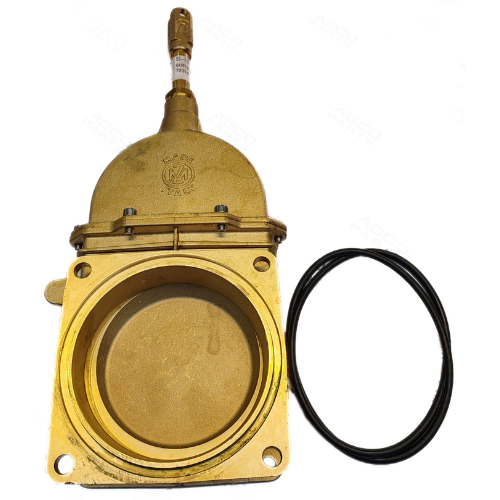

Metaltecnica 6" Gate Valve Flanged x 4 Bolt Complete With O-Rings
High quaility Italian made brass valve supplied with 'O' rings and spindle 'U' piece
- Working pressure: 2.5 bar
- Material: Brass
- Brand: MZ
- Passage hole nominal diameter: 145 mm / 6 Inch
- Flange mounting bolts/holes distance: 150 mm
- Flange mounting bolts/holes diameter: 13 mm
- Flange thickness: 90 mm
- Total width: 180 mm
- Total height: 490 mm
- Passage hole centre to lever end distance: 400 mm
- Centre to right hand side end distance: 107.5 mm
- Lever mounting holes distance (vertical): 324 mm
Suitable for all Surry Tanks
