PTO T4 Shaft ECO T40 x 1200mm Wide Angle

SKU: GE-G19153 IN STOCK

€250.00 (incl. VAT)

€203.25 (ex. VAT)

FAST DELIVERY Order before 2pm for next day delivery
GUARANTEED SECURE CHECKOUT Encrypted payments & trusted checkout
Call parts team Message us

Description

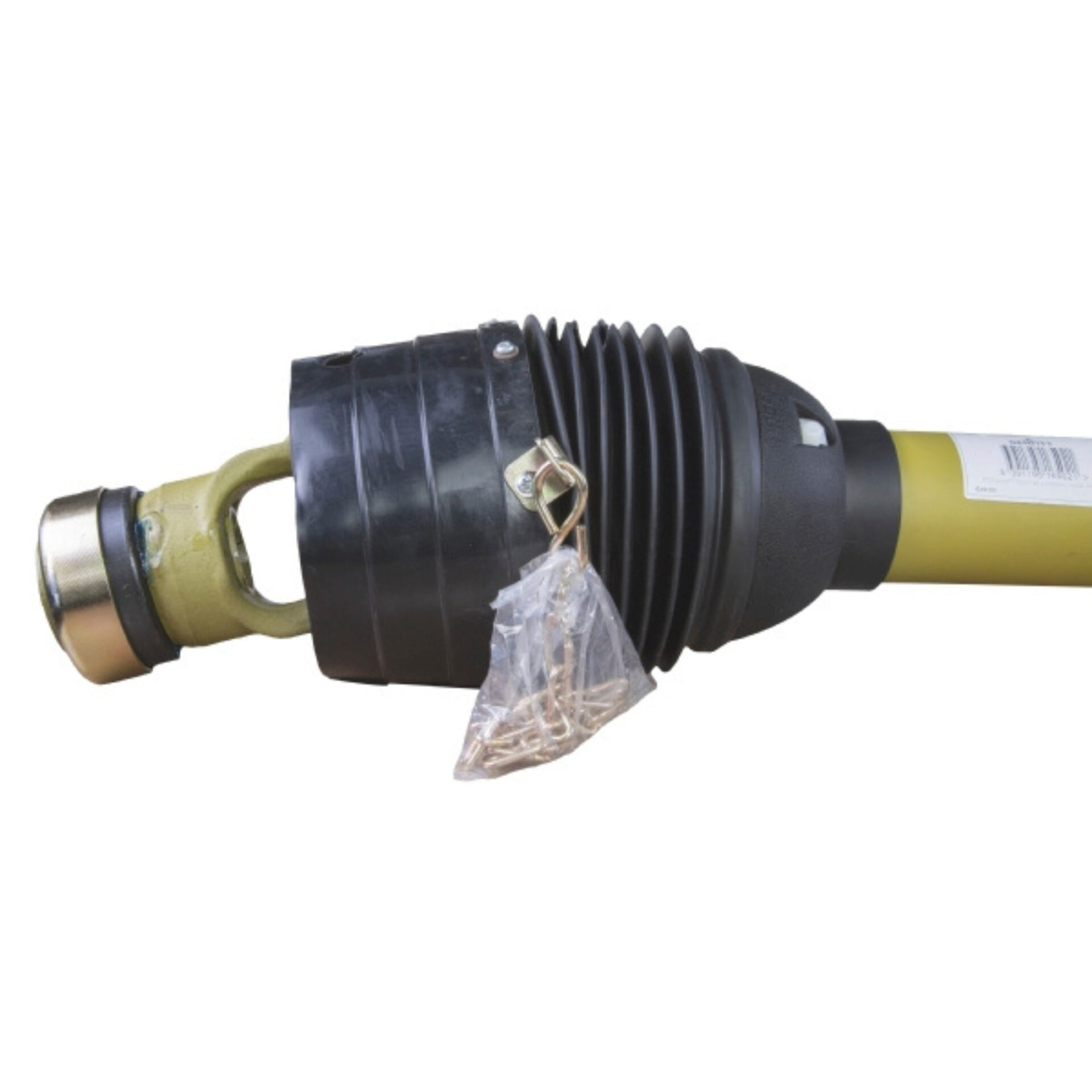

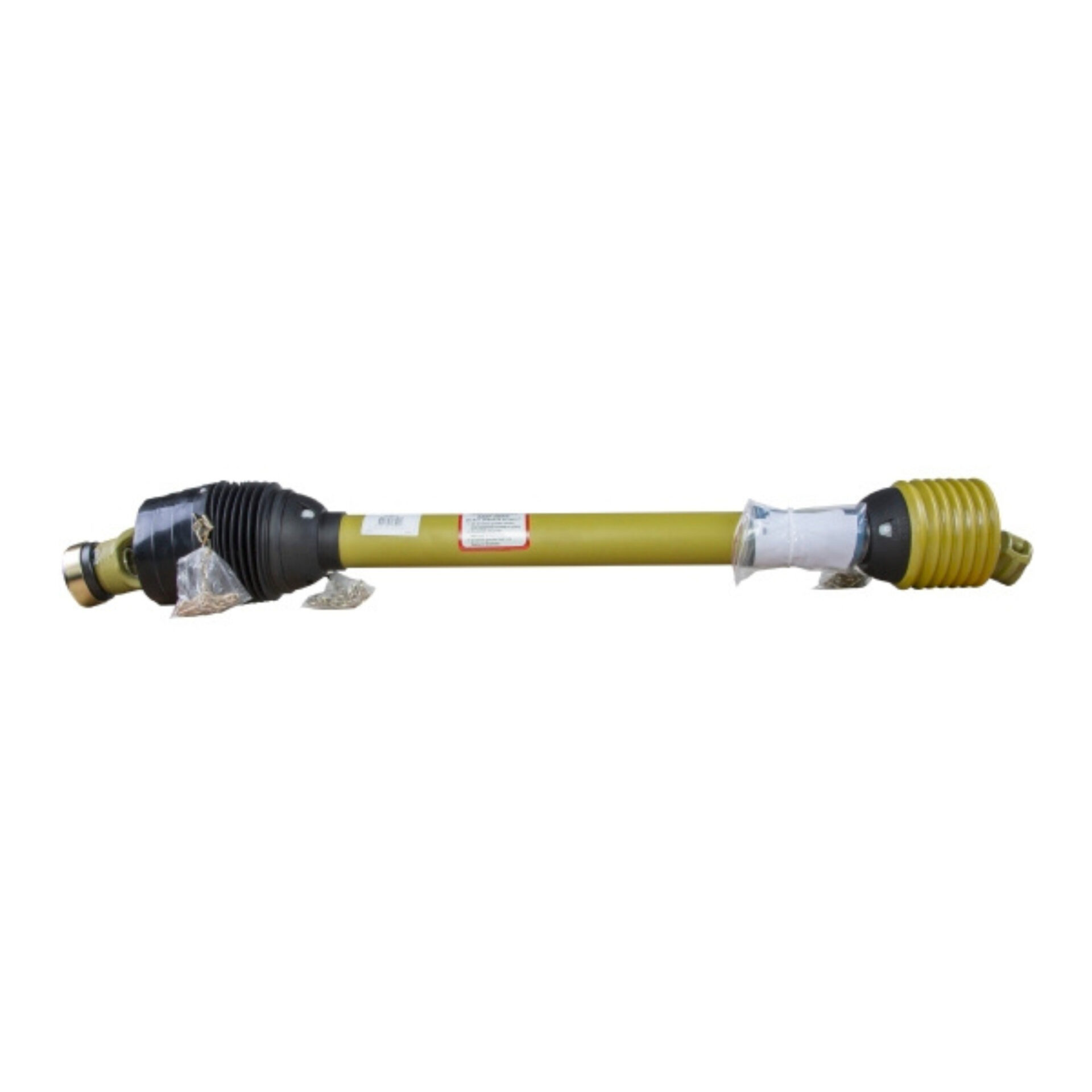

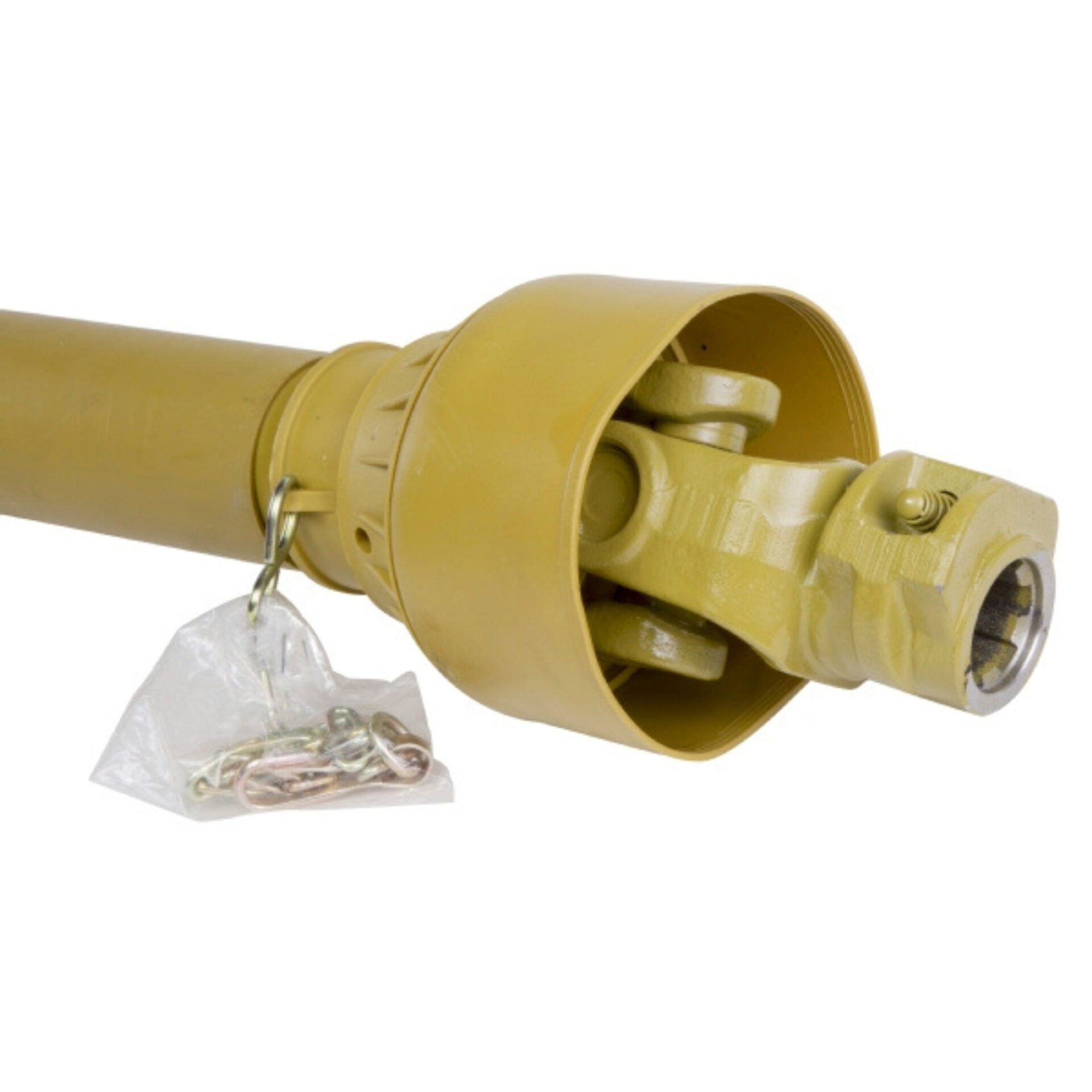

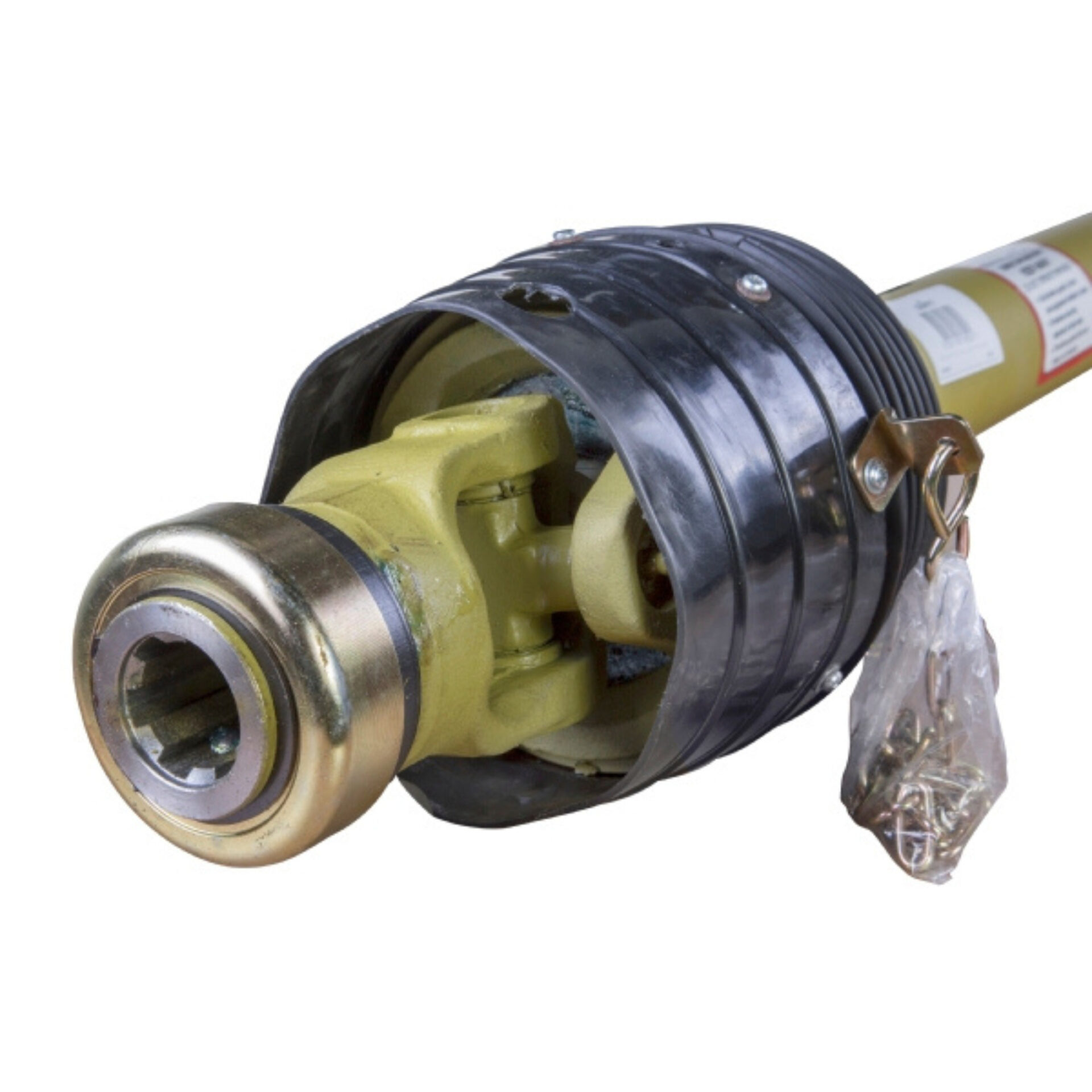

PTO T4 Shaft ECO T40 x 1200mm Wide Angle

  • 80° max unilateral angle
  • High power transmission capacity joint with small swing diameter
  • Easily modifiable profile tube with all spare parts easily replaceable
  • Overall length is measured from outside to outside when shaft is fully closed

Specifications

  • End Type 1: 1 3/8in - 6 Spline
  • End Type 2: 1 3/8in - 6 Spline
  • Series: T4
  • Universal Joint: 4.01 (27 x 75mm)

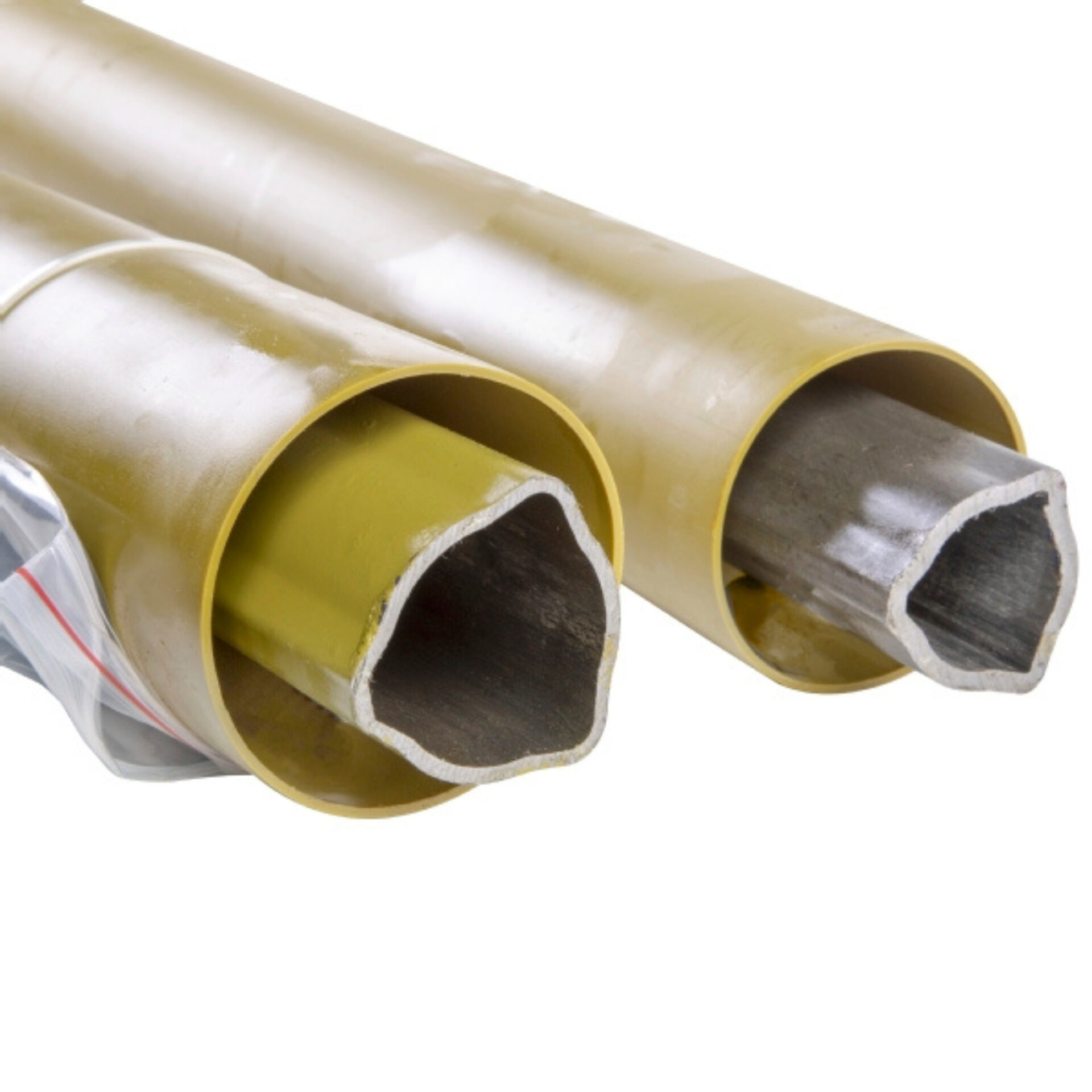

  • Tube Profile: 3 Corner
  • Inner Tube Size: 4.04 (4 x 36mm)
  • Outer Tube Size: 3.03 (3.3 x 43mm)
  • Length: 1,200mm
  • Weight: 20kg
Dimensions
120 cm
