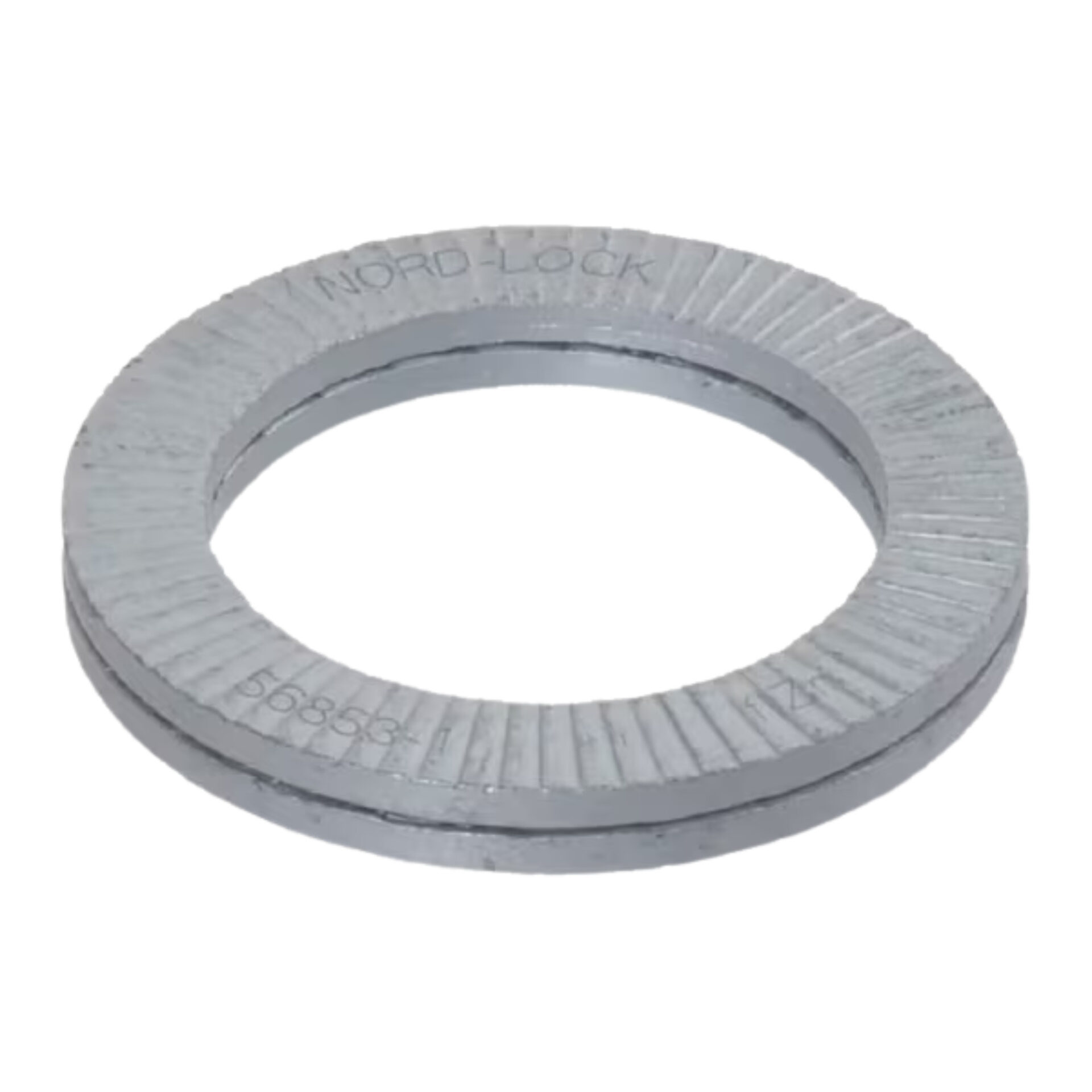

Nord-Lock Washer M12 x 19.5 x 2.5mm Steel Zinc-plated
- Specifications
- Unique WIG-effect on the inside
- Easy assembly, including owing to bonded thread
- Reusable
- Application
- In extreme vibrations
- With dynamic loads
- Properties
- The toothed outside is pushed into the material
- The tilt angle of the wedge surfaces is greater than the tilt angle of the screw thread
- Securing function retained during lubrication
- Very well secured both at low and high pre-load
- Pre-load remains controllable
- Technical info
- The material to be secured must not be harder than the rings
- Benefits
- Prevents detachment due to vibration
- User friendly
- Economical
- Dimensions
- Inside diameter: 13 mm
- Outside diameter: 19.5 mm
- Thickness: 2.5 mm
- Designed for thread: M12
- Surface treatment: Coated
- Material: Steel
- DIN Standard: NL
