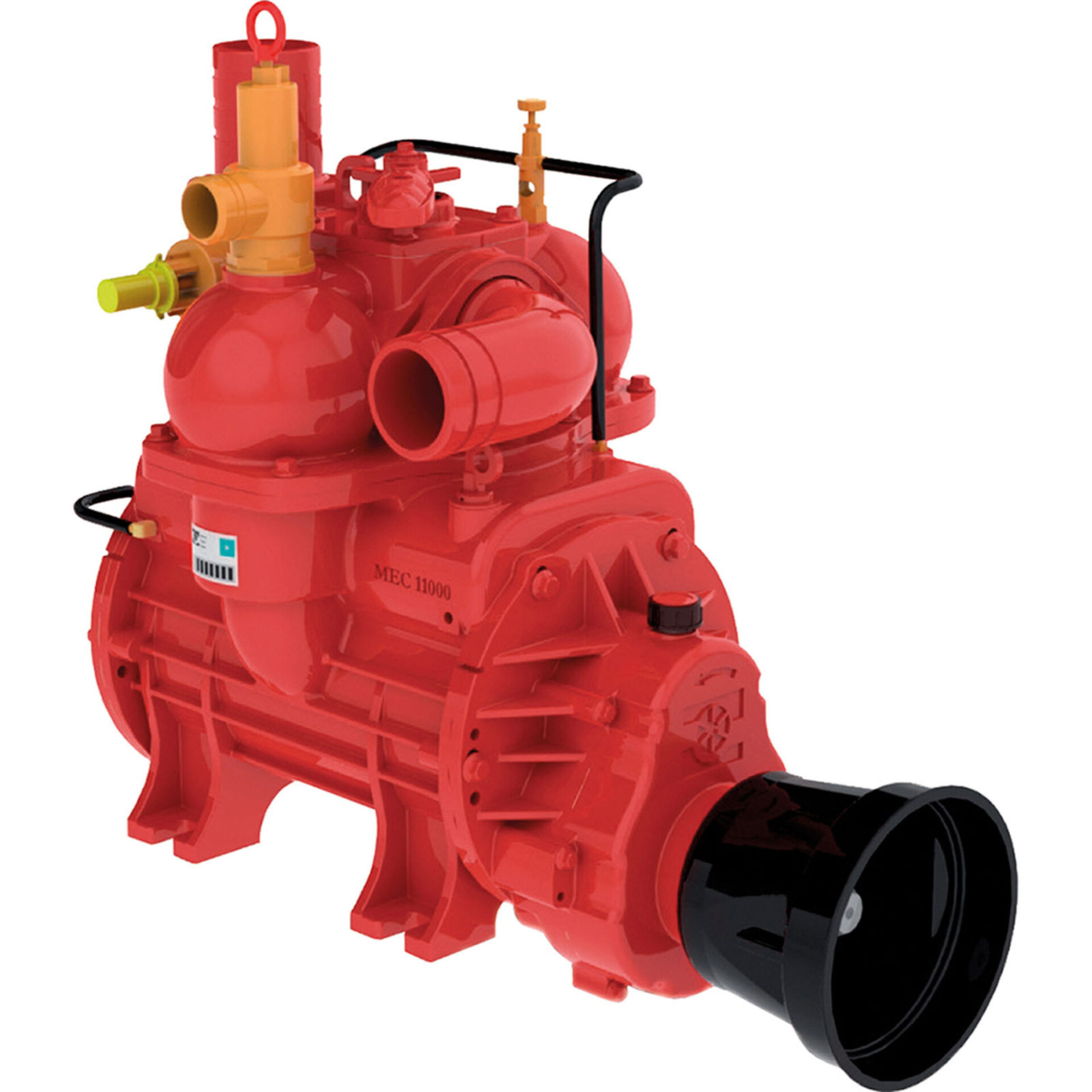

MEC 11000 Standard Vacuum Pump (Series II)
- Supplied without safety and decompression valves
- Mechanical drive
- Maximum flow rate: 11137 lpm
- Maximum RPM: 600 rpm
- Maximum absolute pressure: 2.5 bar (36 psi)
- Maximum relative pressure: 1.5 bar (21 psi)
- Vacuum with depression valve fitted: -0.80 bar
- Max vacuum: -0.95 bar
- Power absorption @ 1.5 bar absolute, 540 rpm: 21 kW
- Power absorption @ 1.5 bar relative, 540 rpm: 40 kW
- Power absorption @ 1.5 bar absolute, 1000 rpm: 21 kW
- Power absorption @ 1.5 bar absolute, 1000 rpm: 40 kW
- Shaft EN ISO 500 Ø: 1 3/8" - 6 spline
- Rotation: Anti-Clockwise
- Lubrication: Manual lubrication
- Oil Tank Capacity (ltrs.): 3L
- Not supplied with 2” Pressure Relief Valve
- Drive Type: PTO driven
- Nett weight: 160 kg
