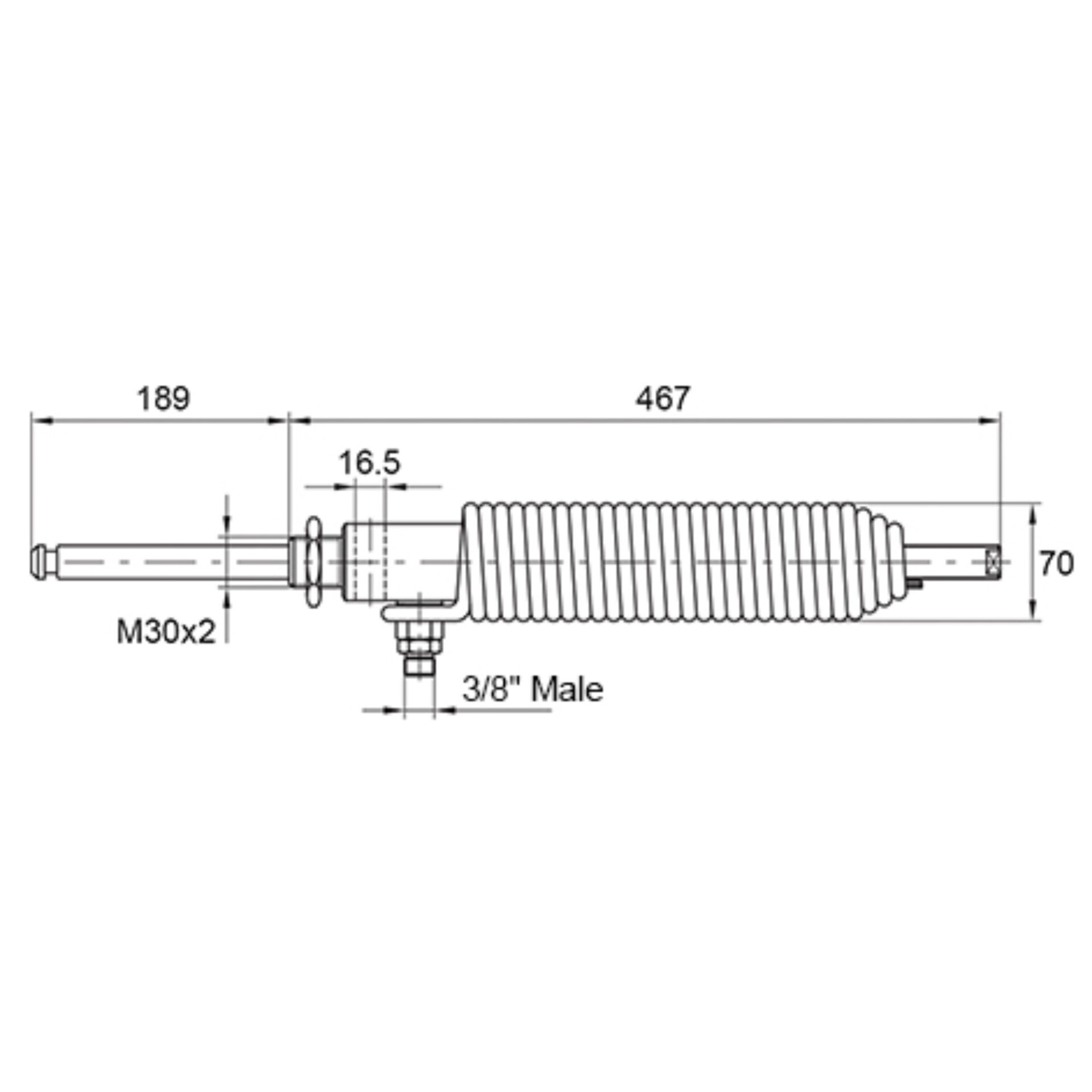

Metaltecnica 6" Spring Loaded Hydraulic Ram Vacumm & Expansion Spring Assembley Kit
For use with 6" Metaltecnica gate valves SS-6000061
- With integrated oil purge
- Port: 3/8" BSP Male
- Brand: MZ
- Spring loaded hydraulic ram with expansion spring
- Finish: Zinc plated
- Type: Expansion spring
- Weight: 5.338kg
- Technical info: Max. 200 bar
- Stroke: 187 mm
- Min. length: 445 mm
- Max. working pressure: 200 BAR
- Mounting thread diameter - cylinder connection: M30
- Mounting thread pitch - cylinder connection: 2.00 mm
- Outside diameter: 70 mm
